Equaline / EQL C L1250 LRO SRE

96632000

Data Sheet

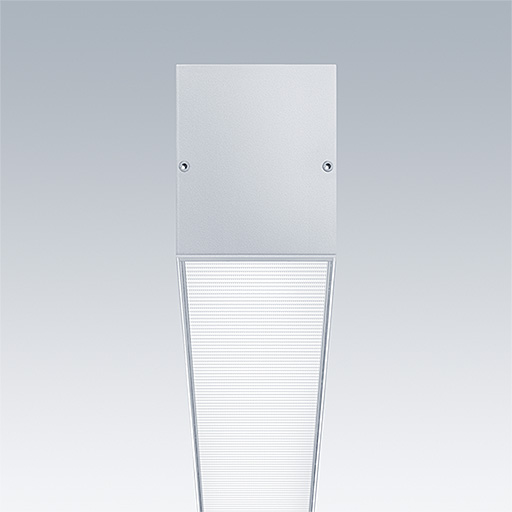

Equaline frameless channel with optics for 2nd generation Equaline. Body: silver powder coated aluminium, suitable for surface, suspended and plasterboard installation. For single and continuous installation. Continuous run with visible joints between optic pieces. Optics: Luminance reducing optic (LRO) with UGR<19 made of PMMA. Batten, end cap set and installation accessories to be ordered separately. Luminaire wired with halogen free leads.

Equaline consists of a channel, LED-batten, cover and accessories, which have to be configured and ordered separately. This product is one part of the complete configuration.

Dimensions: 1250 x 72 x 88 mm
Luminaire input power: 22.6 W
Luminaire luminous flux: 1930 lm
Luminaire efficacy: 85 lm/W
Weight: 2.6 kg

Mode selection
  • Lamp position:4000 K HF
  • Light Source:LED
  • Luminaire luminous flux*:1930 lm
  • Luminaire efficacy*:85 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:22.6 W Power factor = 0.95
