Cetus / CETUS3 M LCS HF RWH

96634895

Change configuration

  • Base: 96634895 — CETUS3 M LCS HF RWH

Data Sheet

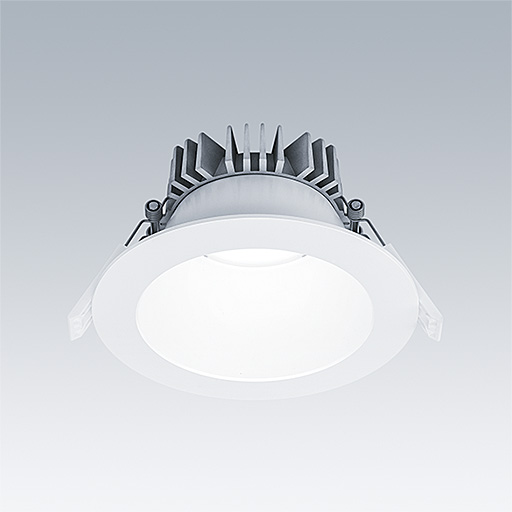

A low height, recessed LED downlight. Suitable for ceiling cut-outs Ø145-180 mm for easy refurbishments or fast initial installations. Remote, pluggable, Fixed output LED driver. Loop in - loop out possible. Body: die-cast aluminium for thermal management. Diffuser: polycarbonate, smooth reflector in white finish with wide beam. Reflector and trim: high quality, highly reflective polycarbonate. Class II electrical, IP44_IP20. Spring clips suitable for ceiling thicknesses from 1 to 35 mm.

Equipped with LCS technology, with two lumen outputs and three colour temperatures, selectable from below by a rotary switch. Pre-set to 4000K, high luminous flux.

Dimensions: Ø195 x 100 mm
Luminaire input power: 25.4 W
Luminaire luminous flux: 3221 lm
Luminaire efficacy: 127 lm/W
Weight: 0.58 kg

Mode selection
  • Lamp position:LCS High 840
  • Light Source:LED
  • Luminaire luminous flux*:3221 lm
  • Luminaire efficacy*:127 lm/W
  • Lamp efficacy:126 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 87500987 LC 24/650/37 fixC SRL ADV2
  • Correlated colour temperature:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000h at 25°C
  • Luminaire input power*:25.4 W Power factor = 0.94
  • Dimming:FIX
  • Maintenance category:C - Closed Top Reflector
  • Total harmonic distortion (THD):15.00 %
