Thor

  • Thor
  • Thor
  • Thor
  • Thor

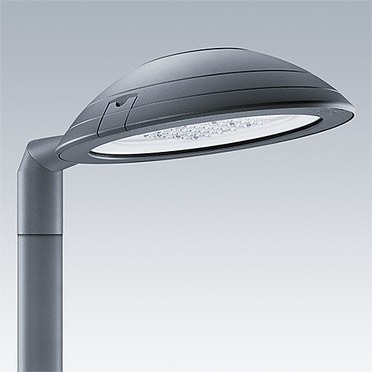

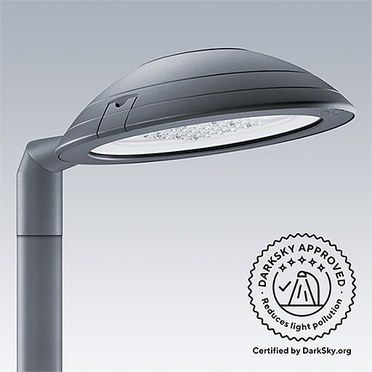

An LED smart urban lantern providing high user comfort and easy integration of connectivity and sensors into city environments

  • High lighting quality creates a comfortable ambience
  • Designed around the high performance R-PEC light engine, ensuring an excellent balance between performance and comfort
  • Compatible with any existing management control system options on the market thanks to the ZHAGA socket option
  • Flexible mounting options extend the scope of application
  • Delivers comfort and warm ambience (3000K, 2700K, 2200K)
  • OTHER OPTIONS ARE AVAILABLE (colour temperature, controls, colour...). See Thor S myProduct for configuration options

Materials and Finish

Dome, 2 options: Thor L, UV stabilized polycarbonate with dark sandy grey finish, close to RAL7043 or with opal finish. Thor S, UV stabilized polycarbonate with opal finish, or die-cast aluminium with dark sandy grey finish.
Glass: toughened flat glass
Bracket: die cast aluminium treated against corrosion and powder coated dark sandy grey finish (close to RAL7043).
Body: die cast aluminium treated against corrosion and powder coated dark sandy grey finish (close to RAL7043) (EN AC-47100 + CAT). Standard corrosion class C5 according to ISO 9223: 2012.
Reflector: ABS white with UV treatment
Screws and closing set: Stainless steel

Installation and Mounting

Recommended mounting height: up to 8m. All post top and side entry versions are pre-wired. Supplied complete and ready to install, in a single box. Suitable for both post top and side entry mounting Ø60mm as standard. Side mounting: Ø60mm x 100mm long spigot, tilting -15° max, secured by 2 screws, delivered tilted at 0° by default. Top mounting: Ø60mm spigot, tilting +10° max, secured by 2 stainless steel screws, delivered tilted at 0° by default. Optimised with R-PEC optics for good control and performance. Catenary and suspended versions fixed through 27G, and 34G. Ø48 mm lateral and post top versions (external Ø60mm, internal Ø48mm), available on request.

Specification

To specify state:
IP66 durable urban LED lantern with full dome or opal dome. Luminaire flux up to 16 986 Llm. Efficiency up to 160 Llm/W. Ø60mm side entry, and post top mountings, as standard. Tilting from -15° to +10°. Wide optical offer with efficient R-PEC optics. CLO, bi-power, DALI and Zhaga as standard. 4000K, 3000K, 2700K, 2200K color temperatures. Ø48mm lateral, Ø48mm post top mountings, catenary and suspended versions (on request for Thor L). Compatible with management control system options via Zhaga socket options.
Thor S : ZU Zhaga socket up, ZD Zhaga socket down, ZUD Zhaga socket up & down.
Thor L : ZD Zhaga socket down. ZD4i certified.
As Thorn Thor.

  • New Product
New Product
LumExpress Product
eControl Product

Thor S, Post top mounting, full dome, narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 12L25-740 NR CL1 FD T60E ANT121532LED8.6596635459
TR 12L25-740 NR CL2 FD T60E ANT121532LED8.6596635448
TR 12L35-740 NR CL1 FD T60E ANT152076LED8.6596635460
TR 12L35-740 NR CL2 FD T60E ANT152076LED8.6596635449
TR 12L50-740 NR CL1 FD T60E ANT212857LED8.7096635461
TR 12L50-740 NR CL2 FD T60E ANT212857LED8.7096635450
TR 12L70-740 NR CL1 FD T60E ANT283832LED8.7096635462
TR 12L70-740 NR CL2 FD T60E ANT283832LED8.7096635451
TR 24L35-740 NR CL1 FD T60E ANT284139LED8.8096635463
TR 24L35-740 NR CL2 FD T60E ANT284139LED8.8096635452
TR 24L50-740 NR CL1 FD T60E ANT385684LED8.8096635464
TR 24L50-740 NR CL2 FD T60E ANT385684LED8.8096635453
TR 24L70-740 NR CL1 FD T60E ANT527592LED8.8596635465
TR 24L70-740 NR CL2 FD T60E ANT527592LED8.8596635454
TR 36L35-740 NR CL1 FD T60E ANT396178LED8.9596635467
TR 36L35-740 NR CL2 FD T60E ANT396178LED8.9596635456
TR 36L50 740 NR C90 HFX CL2 FD WS6 ->536231LED10.6096665247
TR 36L50-740 NR CL1 FD T60E ANT558454LED8.9596635468
TR 36L50-740 NR CL2 FD T60E ANT558454LED8.9596635457
TR 36L70-740 NR CL1 FD T60E ANT7711218LED9.2396635469
TR 36L70-740 NR CL2 FD T60E ANT7711218LED9.2396635458

Thor S, Catenary mounting, full dome, narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 24L105 740 NR-S BS 3550 CL1 FD MCA ->7910183LED8.6096632118
TR 24L105 740 NR-S BS 3550 CL2 FD MCA ->7910183LED8.6096630287
TR 24L105-740 NR-S CL1 FD MCA ANT7910183LED8.8596635466
TR 24L105-740 NR-S CL2 FD MCA ANT7910183LED8.8596635455

Thor S, Catenary mounting, full dome, wide street optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 24L105 730 WS-S BS 3550 CL2 FD MCA ->799222LED8.6096665350
TR 24L105 740 WS-S BS 3550 CL1 FD MCA ->7910114LED8.6096665355
TR 24L105 740 WS-S BS 3550 CL2 FD MCA ->7910114LED8.6096665351

Thor L, Post top mounting, full dome, narrow road optic

Thor L, Post top mounting, full dome, wet road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 RWT BP CL2 FD W9 T60E739870LED13.9096643937
TR 48L50-740 RWT BP CL2 FD W9 T60E7310692LED13.9096643934
TR 72L50-730 RWT BP CL2 FD W9 T60E10914576LED14.8096643947
TR 72L50-740 RWT BP CL2 FD W9 T60E10915791LED14.8096643944

Thor L, Post top mounting, full dome, street comfort optic

Thor L, Post top mounting, opal dome, narrow road optic

Thor L, Post top mounting, opal dome, wet road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 RWT BP CL2 OP W9 T60E799870LED14.2096643897
TR 48L50-740 RWT BP CL2 OP W9 T60E7910692LED14.2096643894
TR 72L50-730 RWT BP CL2 OP W9 T60E11514576LED14.6096643907
TR 72L50-740 RWT BP CL2 OP W9 T60E11515229LED14.6096643904

Thor L, Post top mounting, opal dome, street comfort optic

Thor L, Lateral mounting, full dome, narrow road optic

Thor L, Lateral mounting, full dome, wet road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 RWT BP CL2 FD W9 L60E739870LED13.9096643957
TR 48L50-740 RWT BP CL2 FD W9 L60E7310692LED13.9096643954
TR 72L50-730 RWT BP CL2 FD W9 L60E11514576LED14.8096643967
TR 72L50-740 RWT BP CL2 FD W9 L60E10915791LED14.8096643964

Thor L, Lateral mounting, full dome, street comfort optic

Thor L, Lateral mounting, opal dome, narrow road optic

Thor L, Lateral mounting, opal dome, wet road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 RWT BP CL2 OP W9 L60E799870LED14.2096643917
TR 48L50-740 RWT BP CL2 OP W9 L60E7910692LED14.2096643914
TR 72L50-730 RWT BP CL2 OP W9 L60E11514576LED14.6096643927
TR 72L50-740 RWT BP CL2 OP W9 L60E11515229LED14.6096643924

Thor L, Lateral mounting, opal dome, street comfort optic

Thor L, Catenary mounting, full dome, road comfort optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 72L50 730 RC CL2 FD MCA IO W1210914560LED15.0096631735
TR 72L50 740 RC CL2 FD MCA IO W1210915773LED15.0096631733
TR 72L50-730 RC CL2 FD MCA 12M10914560LED15.0096630232
TR 72L50-740 RC CL2 FD MCA 12M10915773LED15.0096630230

Thor L, Catenary mounting, opal dome, wet road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 72L50 730 RWT CL2 OP MCA IO W1211514576LED15.0096631736
TR 72L50-730 RWT CL2 OP MCA 12M11514576LED15.0096630233
TR 72L50-740 RWT CL2 OP MCA 12M11515229LED15.0096630231
TR 72L50-740 RWT CL2 OP MCA IO W1211515229LED15.0096631734
