A modern heritage post-top or suspended lantern upgraded with high performance light engines

  • Beautiful aesthetics with the post top and suspended versions now almost identical for consistency
  • Available with LEDs (3800/5000lm) for retrofits and more CPO versions
  • Compatible with Bi power, DALI and Telea, providing advanced dimming and control to reduce energy consumption
  • The post top lantern is now D60 as standard and available with or without an illuminated top cap

Materials and Finish

Body: die-cast aluminium, powder coated grey 900 textured finish (cloase to RAL 7043)
Enclosure: flat toughened glass
Reflector: highly reflective anodised aluminium

Installation and Mounting

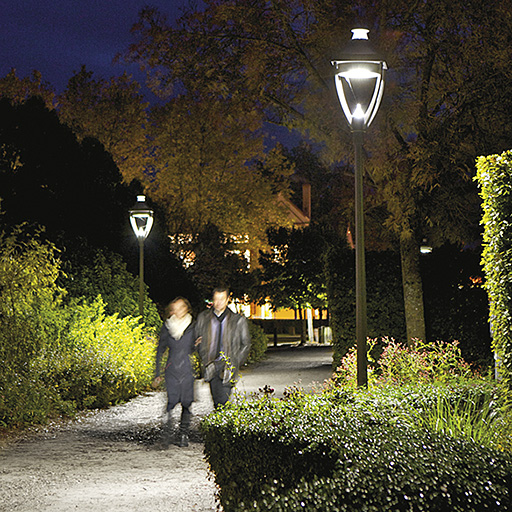

Post-top mounted (MTP) version on shaft through 3xM8 stainless steel screws on poles with D60mm x 100mm spigot. Suspended (MSU) version fixed through with a 34G threaded tube. Recommended mounting heights: 4 to 6m.

Specification

To specify state:
Post-top or suspended 4 arm lantern in die-cast aluminium painted in dark grey, flat toughened glass, with aluminium reflector embodied in an IP65 compartment. Decorative light emission on the top of the lantern / ULOR 0.
As Thorn Legend.

New Product
LumExpress Product
eControl Product

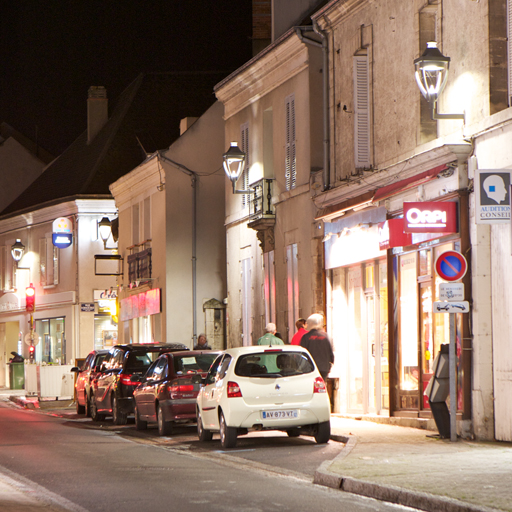

Legend Suspended, LED

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
LEG MSU LED 36L50 RC 730 BP PM CL1 D34G555752LED16.5096262561
LEG MSU LED 36L50 RC 740 BP PM CL1 D34G556329LED16.5096262560
LEG MSU LED 36L70 RC 730 BP PM CL1 D34G777573LED16.5096262567
LEG MSU LED 36L70 RC 740 BP PM CL1 D34G778333LED16.5096262566
LEGEND MSU LED 36L50 RC 730 BP CL1 D34G555752LED16.5096262559
LEGEND MSU LED 36L50 RC 730 BP CL2 D34G555752LED16.5096262698
LEGEND MSU LED 36L50 RC 730 CL1 D34G555752LED16.5096262557
LEGEND MSU LED 36L50 RC 730 CL2 D34G555752LED16.5096262696
LEGEND MSU LED 36L50 RC 740 BP CL1 D34G556329LED16.5096262558
LEGEND MSU LED 36L50 RC 740 BP CL2 D34G556329LED16.5096262699
LEGEND MSU LED 36L50 RC 740 CL1 D34G556329LED16.5096262556
LEGEND MSU LED 36L50 RC 740 CL2 D34G556329LED16.5096262697
LEGEND MSU LED 36L70 RC 730 BP CL1 D34G777573LED16.5096262565
LEGEND MSU LED 36L70 RC 730 BP CL2 D34G777573LED16.5096262702
LEGEND MSU LED 36L70 RC 730 CL1 D34G777573LED16.5096262563
LEGEND MSU LED 36L70 RC 730 CL2 D34G777573LED16.5096262700
LEGEND MSU LED 36L70 RC 740 BP CL1 D34G778333LED16.5096262564
LEGEND MSU LED 36L70 RC 740 BP CL2 D34G778333LED16.5096262703
LEGEND MSU LED 36L70 RC 740 CL1 D34G778333LED16.5096262562
LEGEND MSU LED 36L70 RC 740 CL2 D34G778333LED16.5096262701

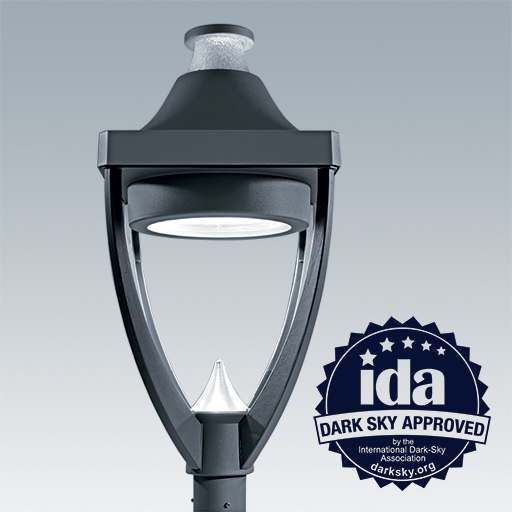

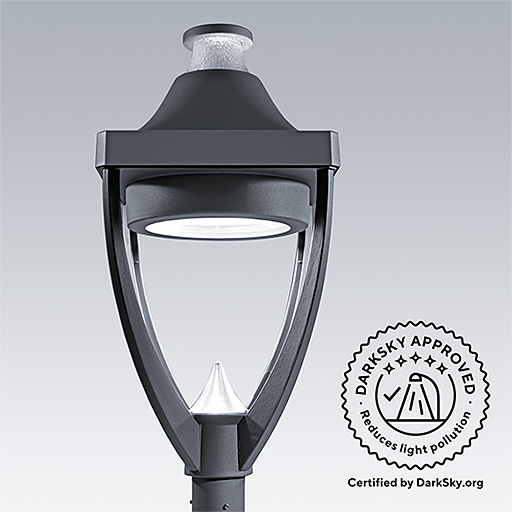

Legend Post top, closed optic, LED

Legend Post top, perforated optic, LED

Legend LED retrofits, closed optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
LEGEND GT LED 36L50 RC 730 BP CL1555752LED3.1096262736
LEGEND GT LED 36L50 RC 730 BP CL2555752LED3.1096262747
LEGEND GT LED 36L50 RC 730 CL1555752LED3.1096262732
LEGEND GT LED 36L50 RC 730 CL2555752LED3.1096262739
LEGEND GT LED 36L50 RC 740 BP CL1556329LED3.1096262735
LEGEND GT LED 36L50 RC 740 BP CL2556329LED3.1096262748
LEGEND GT LED 36L50 RC 740 CL1556329LED3.1096262731
LEGEND GT LED 36L50 RC 740 CL2556329LED3.1096262740
LEGEND GT LED 36L70 RC 730 BP CL1777573LED3.1096262738
LEGEND GT LED 36L70 RC 730 BP CL2777573LED3.1096262749
LEGEND GT LED 36L70 RC 730 CL1777573LED3.1096262734
LEGEND GT LED 36L70 RC 730 CL2777573LED3.1096262741
LEGEND GT LED 36L70 RC 740 BP CL1778333LED3.1096262737
LEGEND GT LED 36L70 RC 740 BP CL2778333LED3.1096262750
LEGEND GT LED 36L70 RC 740 CL1778333LED3.1096262733
LEGEND GT LED 36L70 RC 740 CL2778333LED3.1096262742

Legend LED retrofits, perforated optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
LEGEND GT LED 36L50 RC 730 BP RPF CL2555752LED3.2096262751
LEGEND GT LED 36L50 RC 730 RPF CL2555752LED3.2096262743
LEGEND GT LED 36L50 RC 740 BP RPF CL2556329LED3.2096262752
LEGEND GT LED 36L50 RC 740 RPF CL2556329LED3.2096262744
LEGEND GT LED 36L70 RC 730 BP RPF CL2777573LED3.2096262753
LEGEND GT LED 36L70 RC 730 RPF CL2777573LED3.2096262745
LEGEND GT LED 36L70 RC 740 BP RPF CL2778333LED3.2096262754
LEGEND GT LED 36L70 RC 740 RPF CL2778333LED3.2096262746
