Raze Bollard

  • Raze Bollard

Robust Bollard family with extensive beam achieving impressive uniformity

  • Patented Flat beam® grazing optical technology: an extensive beam that can light pathways up to 4 metres wide, a high utilisation factor for a minimum loss of flux as most of the light emitted is projected on the path
  • The flat and wide light distribution makes it possible to reduce the number of products installed and still maintain a continuous illumination along a path, up to 8 metres spacing. A comfort variant with internal louvre is available (Wide Path Comfort)
  • Available with a motion detection sensor, DALI or LRT to optimize the use of light over nighttime

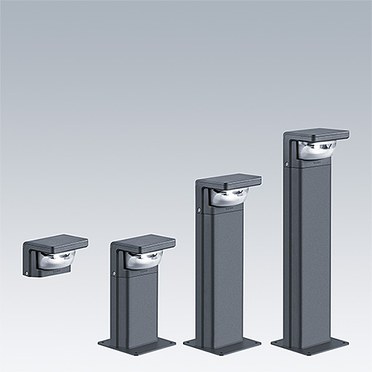

  • Diversity of mounting interface: the head can be mounted on three different pole heights; the head can also be mounted directly on the wall

Materials and Finish

Housing: die-cast aluminium (EN44300) best resistance against corrosion. Powder coated in texturized anthracite grey / light grey/ black, other RAL colours on request. Compatible with seaside installation.
Bowl: partially frosted UV stabilised polycarbonate
Fasteners: stainless steel
Motion detection window: polycarbonate in anthracite grey
Flange plate welded to the pole
Surge protection 6kV, 10kV as a variant
High resistance of the bollard to 20 joules and 200 kilos

Installation and Mounting

40, 70 or 90cm bollard total height, flange mounted, flange: 200x200mm. Driver is located in the head but can be located in the pole for maintenance. Bollard head can be mounted flush on a wall (RAW)

Specification

To specify state:
The Raze family incorporates Thorn’s innovative Flatbeam® technology, which transforms the way we light paths and building surrounds. A high utilization factor means light goes to the surface that needs to be lit, and nowhere else. The flat and wide light distribution makes it possible to reduce the number of products installed and still maintain continuous illumination along a path. Raze lets you achieve the perfect effect, while saving energy and respecting the environment.
As Thorn Raze Bollard, part of the Raze family.

New Product
LumExpress Product
eControl Product

Raze Bollard 400

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
RAB 1L20 730 WPC HF CL2 6K 400 ANT9426LED4.7992909532
RAB 1L35-730 WP HF CL2 6K 400 ANT151142LED4.7996631798

Raze Bollard 700

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
RAB 1L20 730 WPC HF CL2 6K 700 ANT9426LED6.4992909526
RAB 1L20-730 WP HF CL1 6K 700 ANT9699LED6.4996631722
RAB 1L20-830 WPC HF CL1 6K 700 ANT9403LED6.4996632077
RAB 1L20-830 WPC HF/R MAS CL1 6K 700 ANT9403LED7.3896632078
RAB 1L35-730 WP HF CL1 6K 700 ANT151142LED6.4996631723
RAB 1L35-730 WPC HFX/R CL2 SP 700 ANT15696LED7.3596631799
RAB 1L35-830 WPC HF/R MAS CL2 6K 700 ANT15658LED7.3796632079

Raze Bollard 900

Raze Wall

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
RAW 1L20-730 WP HF CL1 6K ANT9699LED2.7796631724
RAW 1L20-830 WPC HF CL1 6K ANT9403LED2.7796632090
RAW 1L35-730 WP HF CL1 6K ANT151142LED2.7796631725
RAW 1L35-730 WP HF CL2 6K ANT151142LED2.7796631800
RAW 1L35-730 WP HFX CL1 6K ANT151142LED2.7796631801

MGR base adaptors

Description   Wt (kg)SAP Code
MGR BASE RAZE/DCO/THOR/CANDLE BOL6.0096635554
MGR SPIKE RAZE/DCO/THOR/CANDLE BOL10.0096635553
