Morrisons Supermarket, Bradford UK

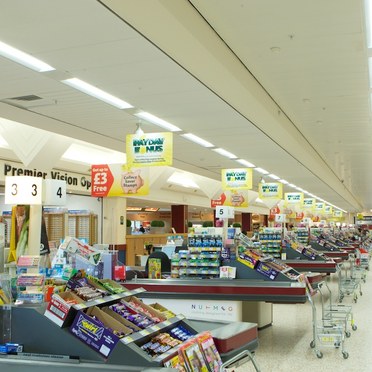

  • Wm Morrisons Supermarket, Bradford UK

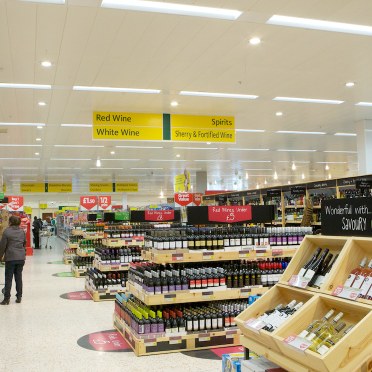

  • Wm Morrisons Supermarket, Bradford UK
  • Wm Morrisons Supermarket, Bradford UK
  • Lamp efficacy

    Lamp efficacy

    High quality LED modules and drivers and high performance optics combine to provide high levels of useful light output for less energy input.

  • Ballast classification

    Ballast classification

    Controlling the electricity supply to the lamp (Energy Efficiency Index).

  • Luminaire distribution

    Luminaire distribution

    Retail specific luminaire optics provide good levels of vertical illuminance, accurately and efficiently providing the correct light at the required place.

  • System efficacy

    System efficacy

    Combining optical and thermal control within the luminaire (luminaire lm/W).

  • Presence/absence detection

    Presence/absence detection

    Presence: Lights automatically turn on/off with movement. Absence: Lights automatically turn off and must be manually switched on.

  • Daylight detection

    Daylight detection

    Artificial lighting which responds to the natural light conditions.

  • Constant illuminance

    Constant illuminance

    A function designed to produce correct light levels for the duration of the maintenance period.

  • Task-scene setting

    Task-scene setting

    Allowing the user to set scenes and adapt the lighting to different tasks.

  • Timed off

    Timed off

    Automatic cut-off can be installed to turn all lights off during unoccupied hours.

  • Task lighting

    Task lighting

    Providing the required levels of light onto the task with minimal spill light reduces over-lighting of surrounding areas, providing the correct light levels to all areas whilst minimising energy use.

  • Zoning of lighting

    Zoning of lighting

    Lighting is zoned according to area use.

  • Maintenance schedule

    Maintenance schedule

    Maintenance must be performed in response to product age, performance and environment.

  • Waste light

    Waste light

    Eliminating waste light which does not hit the intended target.

  • Reflectance

    Reflectance

    Taking advantage of light which is reflected from the surface within the space.

  • Visible smart metering

    Visible smart metering

    Results of actions can be quickly seen as increased or decreased energy use to encourage responsible energy consumption.

Thorn develops bespoke LED luminaire for Wm Morrisons multi-store refurbishment

Like every national retailer, Wm Morrisons has energy and carbon reduction at the top of its green agenda. Head of Energy at Wm Morrisons, Stuart Kirk, has a target to reduce energy expenditure by €20 million while maintaining high quality lighting, which is so integral to the shopping experience.

In May 2012 Stuart approached Thorn to request a bespoke retrofit LED luminaire, which could be easily mounted into the Thorn Arena Trough system. The recessed system had been installed in most of the traditional Wm Morrisons stores for over 20 years using fluorescent T8 lamps and HF control gear. Stuart therefore saw an LED solution as a quick-win to reducing the overall lighting load.

Bespoke designs put to the test

Thorn worked with Ian Jagger, Electrical Services Projects Manager at Wm Morrisons and project management and installation partner, IES to develop a bespoke LED luminaire for the high level shop floor lighting which would replicate the distribution of the T8 luminaires with improved performance. Bevelled and flat luminaire designs were put forward with extensive trials at the headquarter mock-up store in Bradford. The conclusion was that the bevelled solution better suited the required look and feel.

Thorn also worked with project partner, Tridonic, to build in the Stark LLE 24 panels with LCI 070 300 drivers to produce a luminaire with efficacy of 91 Lm/W. An opal panel was used to diffuse the LED light source to reduce glare and 300mm blanking plates were installed between each fitting to match the current ceiling layout and improve the uniformity and aesthetics.

Client benefit

By replacing the old fluorescent T8 lamps and HF control gear (140W) with the latest LED technology (52W), Wm Morrisons benefits from 63% lower energy consumption. By using the LED solution it also allowed for the total number of luminaire to be reduced slightly which increased energy savings from 63% to 70%. The improved luminaire efficacy has also increased the store lighting levels and improved uniformity.

This gives a much brighter and uniform feel with a crisp colour temperature of 4000K. The specifically designed retail optics also provide improved vertical illuminance to ensure products on the shelves stand out to customers.

As part of the solution, Thorn additionally trained the installing contractor to develop a quicker installation method. This was because it was important that the system could be installed across a store within three nights during closing times.

For more information about Arena, contact your local sales organisation.

Key Facts

  • Energy saving: 70%
  • Cost saving per annum: €39,355.91
  • CO2 saving per annum: 195 tonnes
  • Luminaires designed for sustainability and end of life recycling
  • Payback: 2.6 years
