Cetus / CETUS3 S LCS HF RWH

96634894

Change configuration

  • Base: 96634894 — CETUS3 S LCS HF RWH

Data Sheet

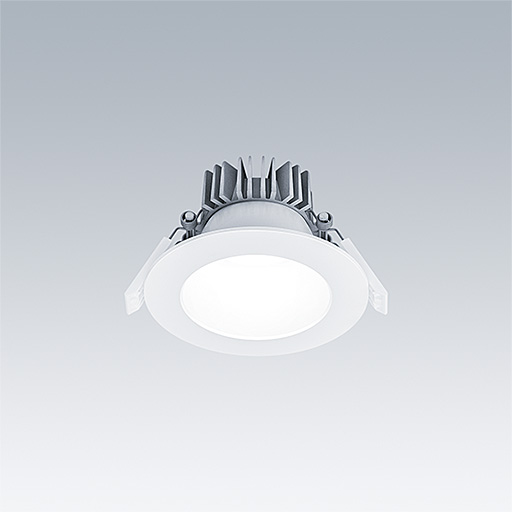

A low height, recessed LED downlight. Suitable for ceiling cut-outs Ø95-125 mm for easy refurbishments or fast initial installations. Remote, pluggable, Fixed output LED driver. Loop in - loop out possible. Body: die-cast aluminium for thermal management. Diffuser: polycarbonate, smooth reflector in finish with wide beam. Reflector and trim: high quality, highly reflective polycarbonate. Class II electrical, IP44_IP20. Spring clips suitable for ceiling thicknesses from 1 to 25 mm.

Equipped with LCS technology, with two lumen outputs (800lm and 1500lm) and three colour temperatures (3000K, 3500K and 4000K) selectable from below by a rotary switch. Pre-set to 4000K, high luminous flux.

Dimensions: Ø137 x 80 mm
Luminaire input power: 13.1 W
Luminaire luminous flux: 1509 lm
Luminaire efficacy: 115 lm/W
Weight: 0.32 kg

Mode selection
  • Lamp position:LCS High 840
  • Light Source:LED
  • Luminaire luminous flux*:1509 lm
  • Luminaire efficacy*:115 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 87500986 LC 13/400/31 fixC SRL ADV2
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:13.1 W Power factor = 0.94
  • Dimming:FIX
  • Maintenance category CIE 97:C - Closed Top Reflector
