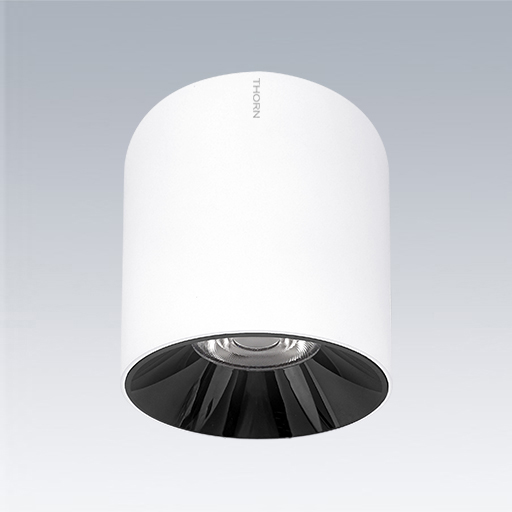

Cruz MSF / CRUZ MSF 180 4500-840 WD HFA IP65

Highly efficient integrated LED surface-mounted downlight with lens and anti-glare reflector provides harmonious light. A surface mounted LED luminaire. analogue 0-10V Class I electrical, IP65, Impact strength: IK06. Body: aluminium, white (RAL9003). Can be suspended by using wire suspension and rope suspension accessory kits (to be ordered separately). Colour rendering Ra > 80, colour temperature 4000 K.

Dimensions: Ø180 x 185 mm
Luminaire input power: 40 W
Luminaire efficacy: 113 lm/W
Weight: 2 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:4500 lm
• Luminaire efficacy*:113 lm/W
• Colour Rendering Index min.:80
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):3
• Rated median useful life*:L80 50000 h at 35 °C
• Ballast:1x LED_DRV
• Luminaire input power*:40 W Power factor = 0.9
• Dimming:0-10V
