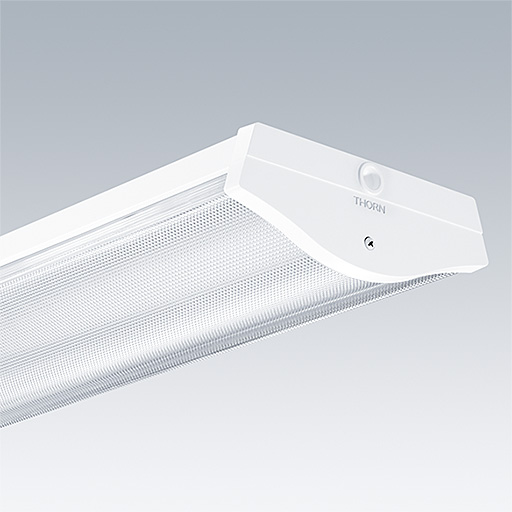

A range of curved profile linear LED luminaires with prismatic diffusers for surface or suspended mounting

  • Clear prismatic diffuser in tough polycarbonate for specific light control and impact resistance
  • Rigidly fixed diffuser held in place by screwed on polycarbonate end caps for improved diffuser security and vandal/impact resistance
  • Sealed to IP44
  • Easy to remove and replace gearcover protects components

Materials and Finish

Body and gear tray: white galvanised prepainted steel.
End caps: polycarbonate
Diffuser: precision extruded clear prismatic polycarbonate.

Installation and Mounting

Two cable entry holes (Ø21.5mm) in the centre of the back spine. Optional cable entry through each end cap. Fitting supplied with sealing grommets and 'quick-fix' horseshoe sliding washers for direct screw fixing to surface. Standard BESA fixings. 5 x 2 x 2.5mm² piano key terminal block supplied for easy and quick looping. 5 x 2 x 2.5mm² + 3 x 2 x 2.5mm² piano key terminal block for HFD emergency versions.

Specification

To specify state:

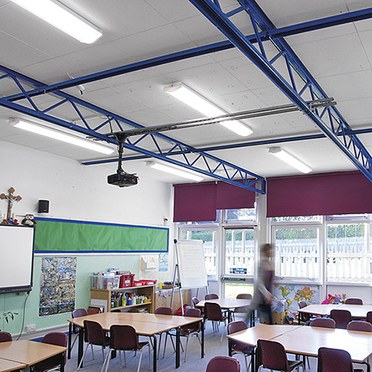

Surface mounted IP44 LED luminaire with curved clear prismatic polycarbonate diffuser retained along its length by screwed on end caps employing protected high frequency/dimmable/emergency gear for LEDs for educational lighting.
As Thorn College.

New Product
LumExpress Product
eControl Product

College

DescriptionLuminaire power (W)Luminaire output (lm)   TypeSocketWt (kg)SAP Code
COLLEGE 2100-840 HF L1200162100LEDLED3.6396628926
COLLEGE 2900-840 HF L1500242900LEDLED4.4496628922
COLLEGE 4200-840 HF L1200324200LEDLED3.6396628932
COLLEGE 4650-840 HF L1500364650LEDLED4.4496628918
COLLEGE 6500-840 HF L1500576500LEDLED4.4496628877

College emergency

DescriptionLuminaire power (W)Luminaire output (lm)   TypeSocketWt (kg)SAP Code
COLLEGE 2100-840 HF E3 L1200172100LED4.0996628927
COLLEGE 2900-840 HF E3 L1500233000LED4.9096628923
COLLEGE 4200-840 HF E3 L1200324200LEDLED4.0996628933
COLLEGE 4650-840 HF E3 L1500364650LEDLED4.9096628919
COLLEGE 6500-840 HF E3 L1500576500LEDLED4.9096628879

College dimmable

DescriptionLuminaire power (W)Luminaire output (lm)   TypeSocketWt (kg)SAP Code
COLLEGE 2100-840 HFIX L1200162100LEDLED3.6396628928
COLLEGE 2900-840 HFIX L1500242900LEDLED4.4496628924
COLLEGE 4200-840 HFIX L1200324200LEDLED3.6396628934
COLLEGE 4650-840 HFIX L1500364650LEDLED4.4496628920
COLLEGE 6500-840 HFIX L1500576500LEDLED4.4496628878

College dimmable, emergency

DescriptionLuminaire power (W)Luminaire output (lm)   TypeSocketWt (kg)SAP Code
COLLEGE 2100-840 HFIX E3 L1200172100LED4.0996628929
COLLEGE 2900-840 HFIX E3 L1500233000LED4.9096628925
COLLEGE 4200-840 HFIX E3 L1200324200LEDLED4.0996628935
COLLEGE 4650-840 HFIX E3 L1500364650LEDLED4.9096628921
COLLEGE 6500-840 HFIX E3 L1500646500LED4.9096628880

College Accessories

Description   Wt (kg)SAP Code
WIRE SUSPENSION KIT 1,5M0.1596204619
