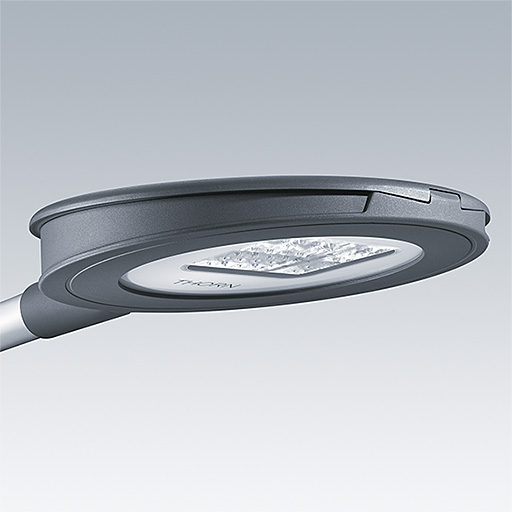

Dyana

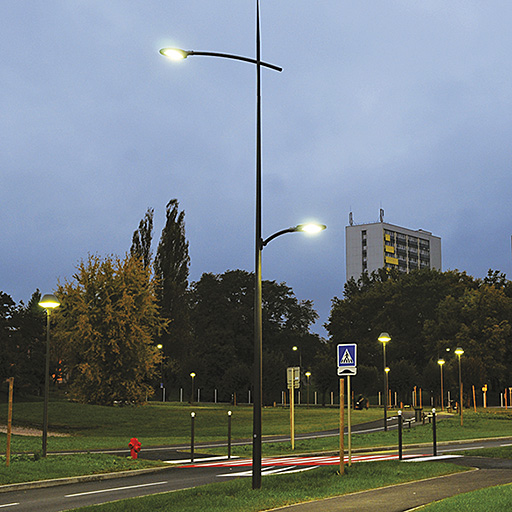

A high quality LED luminaire to enchance efficiently urban roads and streets up to Me2

Flexibility of use: 13 lumen outputs (up to 21500 lm), top or lateral mountings and two optics to cover a wide range of lighting projects from S to Me2 classes
High performance Thorn R-PEC road and street lighting LED optic with high efficiency (up to 150 lm/W)
Durable IP66 and IK10 luminaire made of high quality die-cast aluminium
Coordinated with new brackets and columns for a full harmonised architectural project

Materials and Finish

Body, spigot and canopy: die-cast aluminium (EN AC-47100), power coating textured dark grey finish. Standard corrosion class: C3. Standard corrosion class C5 according to ISO 9223: 2012.
Flat glass cover: 5mm thick toughened glass.
Gasket: Ethylene Propylene Diamine rubber (EPDM).

Installation and Mounting

Optimised narrow road (NR) and wide street (WS) optic for good control and comfort. Dedicated range of Dyana (Thorn range) columns and brackets.
Side entry mounting Ø 60mm, tilt = 0°, -5°. Post top mounting Ø 60mm and Ø 76mm as standard, tilt 5°, 10°. End cap secured by 2 screws.
Slim section only 92mm thick. Opening from above. Supplied complete and ready to install, in a single box. Weight: 12 kg max.
Supplied complete and ready to install, in a single box. Weight: 15kg max. Option for Ø 76 mm mounting with spigot accessory.

Specification

To specify state:
IP 66 aluminium decorative streetlighting lantern in 2 sizes. Side entry and top mountings, 60mm and 76mm diameters options of tiltings. With options for dimming, CLO (constant light output) and presence detection.
As Thorn Dyana LED.

▼ Dyana LED, Size 1

Description	Luminaire power (W)	Luminaire output (lm)				Type		Wt (kg)	SAP Code
DYANA LED 36L50 NR 740 CL1 HT MLE60 ecoCALC DIALux RELUX	54	7768				LED		11.70	96263154
DYANA LED 36L50 NR 740 CL2 HT MLE60 ecoCALC DIALux RELUX	54	7768				LED		11.60	96263153

▼ Dyana LED, Bi-power, size 1

Description	Luminaire power (W)	Luminaire output (lm)	Type	Wt (kg)	SAP Code
DYANA LED 12L70 NR 740 BP CL1 MLE60 PM ecoCALC DIALux RELUX	27	3521	LED	10.90	96261127
DYANA LED 36L50 NR 740 BP CL1 HT MLE60 ecoCALC DIALux RELUX	54	7768	LED	11.70	96263156
DYANA LED 36L50 NR 740 BP CL2 HT MLE60 ecoCALC DIALux RELUX	54	7768	LED	11.60	96263155

▼ Brackets

Description								Wt (kg)	SAP Code
SATYS2 1xBRA 0,8 MTP D60 ANT ecoCALC								10.30	96264454
SATYS2 MWA 0,4 ANT ecoCALC								2.40	96264458

▼ Column packages

Description	Wt (kg)	SAP Code
SATYS2 COL 8M 1xBRA 1,2 D60 ANT ecoCALC	80.00	96264464
SATYS2 COL 8M 1xBRA 1,2 D60 MWA ANT ecoCALC	86.00	96264466
SATYS2 COL 8M 2xBRA 1,2 D60 ANT ecoCALC	85.00	96264465
SATYS2 COL 9M 2xBRA 1,2 D60 ANT ecoCALC	95.00	96264468
