  • Caelon S — CAELON S3x 320-830 N WH 2M 66

Caelon S / CAELON S3x 320-830 N WH 2M 66

21013590

▼ Data Sheet

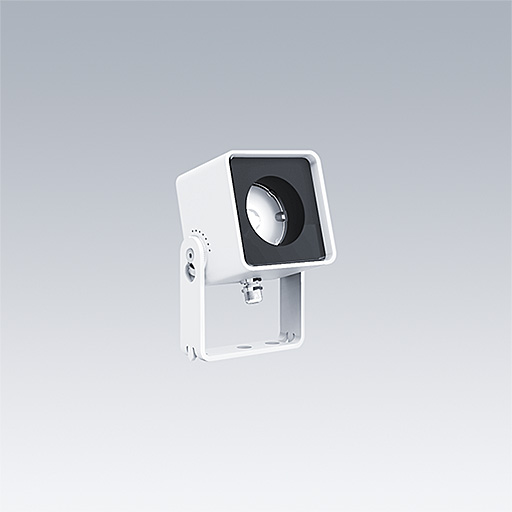

Caelon S adjustable surface mounted spotlights for the illumination of architectural facades, feature details, niches and structures. Class I electrical, IP66 with narrow beam distribution. Remote driver to be ordered separately. Body: Die-cast aluminium in white. Stainless steel screws. Pre-fitted with 2m cable. ambient temperature: -20°C to +25°C. Complete with 3000K LED.

Dimensions: 48 x 48 x 38 mm
Luminaire input power: 6.2 W
Luminaire luminous flux: 375 lm
Luminaire efficacy: 60 lm/W
Weight: 0.17 kg

Mode selection

    ▼ Photometry

    Photometric configuration

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Step 1: Technical data
    (lm)
    (m)
    (m)
    (%)
    Step 2: Room Data
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
