An elegant and efficient LED lantern with a drop like enclosure to provide a unique lighting signature and comfortable light

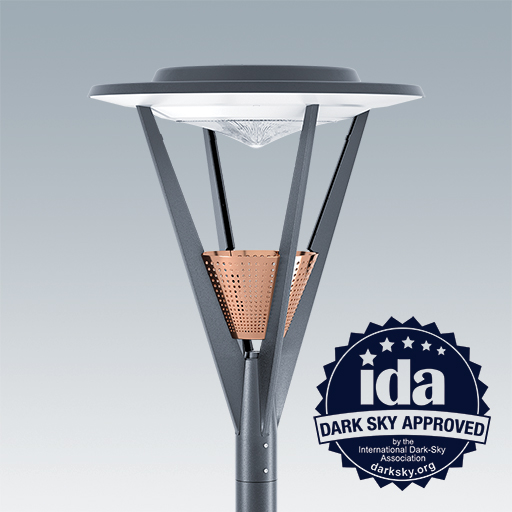

  • IDA Dark Sky Approved
  • *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures. Luminaires must be mounted as photometered.
  • Environmentally-friendly with a combination of warm color temperatures, limited upward lighting and a choice of diming options, Zhaga compatible
  • Decorative lampshield in copper or steel to create your own identity
  • Low cost of ownership with a lifetime of 100,000 hours (25°C, L90) and a choice of diming

Materials and Finish

Base and arms: die cast aluminium (EN AC-46000, standard corrosion class C3).
Canopy: spun aluminium.
Finish: powder coated anthracite textured grey 900 (close to RAL7043). Choice of RAL.
Lampshiled: metallised PC with copper or stainless steel, special varnish to prevent ageing effect and preserve the initial gloss appearance.
Diffuser: clear or frosted UV stabilised PC
Reflector and mirrors (street distribution): high reflective anodised aluminium.
Screw fixings: stainless steel.

Installation and Mounting

Suitable for post top mounting. Recommended height: 3/4m, coordinated Avenue wall bracket. Spigot: 60mm (length: 90mm). Access to gear and LED module (replaceable) via 4 screws from the canopy. Product supplied with connector below the lantern or pre-wired with HO5 RN-F cable. Delivered ready to install, complete with factory fitted integral gear, all supplied in one box.

Specification

To specify state:
IP66 post top decorative aluminium lantern, powder coated anthracite grey finish, with frosted diffuser and a choice of metallised PC copper or stainless steel lampshields. Street or symmetrical distributions, integrated dimming system and coordinated decorative column.
As Thorn Avenue D² LED.

New Product
LumExpress Product
eControl Product

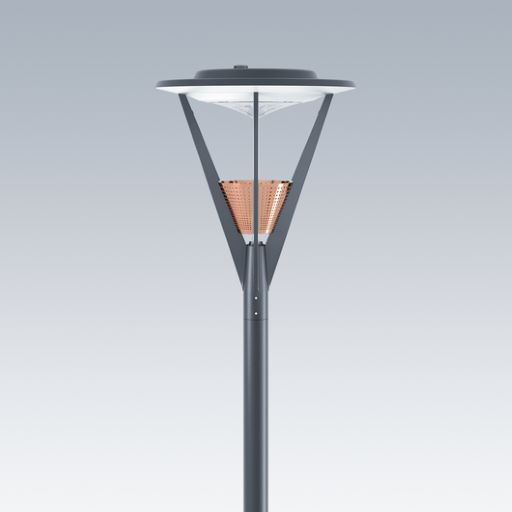

Avenue D2 LED Symmetrical optic, copper lampshield

Avenue D2 LED Symmetrical optic, stainless steel lampshield

Avenue D2 LED Asymmetrical (street) optic, copper lampshield

Avenue D2 LED Asymmetrical (street) optic, stainless steel lampshield

Avenue D2 LED Accessories

Description   Wt (kg)SAP Code
AVENUE D BRA MWA TX ANT4.0096005422
