Legend / LEGEND 36L70 NR 730 BP CL2 T60

96275399

Data Sheet

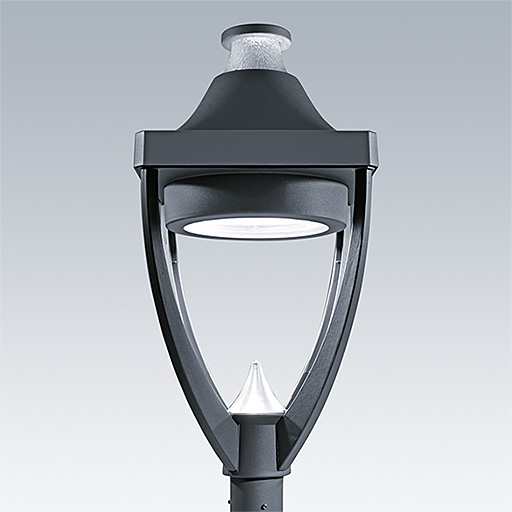

A modern heritage post top LED lantern with Narrow Road closed optic. Electronic,. Class II electrical, IP65, IK08. Body: die-cast aluminium powder coated grey 900 textured finish (close to RAL 7043). Enclosure: flat toughened glass. Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode. Complete with 3000K LED.

Dimensions: 446 x 446 x 999 mm
Luminaire input power: 77 W
Weight: 17.5 kg
Scx: 0.14 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:8635 lm
  • Luminaire efficacy*:112 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 87500825 LCO 90/200-1050/165 NF C ADV3
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 100000 h at 25 °C
  • Luminaire input power*:77 W Power factor = 0.97

Photometry

Photometric configuration

CalcExpress
