Thor Bollard

  • Thor Bollard
  • Thor Bollard
  • Thor Bollard
  • Thor Bollard

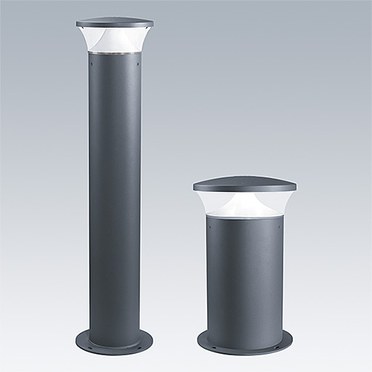

Elegant vandal resistant bollard with high performance optic offering a comfortable light and energy saving solutions

  • Best in class LED optic provides a comfortable, low glare direct and indirect light with asymmetric or symmetric distribution, sympathetic to users with a lower viewing angle
  • Durable and vandal resistant (IK10 40 joules for the slim version)
  • Bi power dimming and presence detection options reduce energy consumption
  • Available in two sizes – slim and wide – with the wide version also suitable for use as street furniture

Materials and Finish

Column and base: aluminium
Canopy: die-cast aluminum (EN AC-47100, standard corrosion class C3).
Diffuser: clear anti UV Polycarbonate
Reflector: white Polycarbonate
Gear Box: Polypropylene
Canopy and Column colour: powder coated dark grey (close to 7043)

Installation and Mounting

Slim version: suitable for Root and Flange mounting: 4 x anchor bolts M14 (96009822 to be ordered separately), spacing: 150mm.
Wide version: suitable for Flange mounting: 4 x anchor bolts M14 (to be ordered separately), spacing: 200mm.
Ready to install: prewired fittings to be connected with a connection box (to be ordered separately) through the anti vandal access door (via Torx hollow T30)
For RGB and Bi power versions choose the colour of the decorative led band or deactivate the Bi Power function at installation through the access door.
Gear box (including the driver) and head (including the LEDs) are easily replaceable as spares.

Specification

To specify state: Elegant and vandal resistant bollard offering asymmetric and symmetric distributions, combining both direct and indirect comfortable light, with decorative colour and dimming/presence detection.
As Thorn Thor Bollard.

New Product
LumExpress Product
eControl Product

Thor Bollard Slim 250mA, Lit band, flange mounted

Thor Bollard Slim 250mA, No lit band, flange mounted

Thor Bollard Slim 250mA, Lit band, root mounted

Thor Bollard Slim 250mA, No lit band, root mounted

Thor Bollard Slim 350mA, Lit band, flange mounted

Thor Bollard Slim 350mA, No lit band, flange mounted

Thor Bollard Slim 350mA, Lit band, root mounted

Thor Bollard Slim 350mA, No lit band, root mounted

Thor Bollard Slim, Presence detection master, flange mounted

Thor Bollard Slim, Presence detection master, root mounted

Thor Bollard Slim, Presence detection slave, flange mounted

Thor Bollard Slim, Presence detection slave, root mounted

Thor Bollard Wide, Lit band, flange mounted

Thor Bollard Wide, No lit band, flange mounted

Connection box, Slim version

Description   Wt (kg)SAP Code
TEMPO16 CL2 4X16 1C/C0.4696012372

Connection box, Wide version

Description   Wt (kg)SAP Code
CONNECT CABLE BOX 3/4x2,5² IP670.4096257908

MGR base adaptors

Description   Wt (kg)SAP Code
MGR BASE RAZE/DCO/THOR/CANDLE BOL6.0096635554
MGR SPIKE RAZE/DCO/THOR/CANDLE BOL10.0096635553
