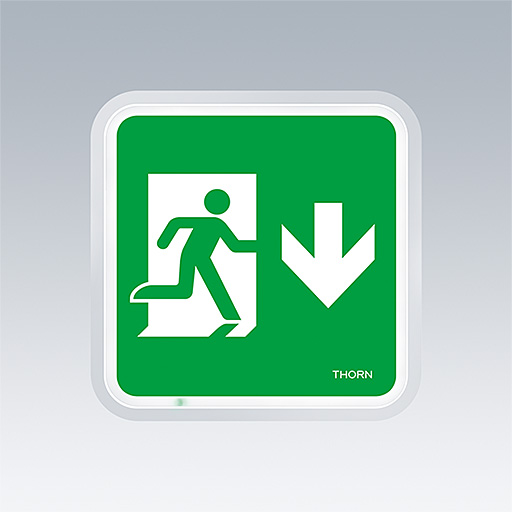

Voyager Square

  • Voyager Square
  • Voyager Square

Strong, smooth and highly protected

  • IP 65 - protection against dust & water, making it an ideal fitting for indoor and outdoor applications
  • IK 10 impact strength: resists impacts of up to 20 joules ensuring a high level of protection against mechanical shocks
  • Clean, smooth aesthetic design reduces dust and dirt accumulation and ensures easy cleaning and lowest maintenance requirements
  • Easy installation saving time and money
  • Self-contained emergency luminaires rely on long-lasting batteries. The high-tech lithium iron phosphate battery used is robust and comes with a three-year guarantee, giving users peace of mind.
  • With a recognition range of 44 metres, and a luminance level > 500 cd/m² in the white area and > 200 cd/m² on average (acc. to DIN 4844), the luminaire fulfills the highest illumination standards and is clearly visible also in demanding environments.

Materials and Finish

Body and bezel: polycarbonate, white
Diffuser: polycarbonate, white, diffuse
Screws: steel, zinc plated
Silicone and halogen free

Installation and Mounting

Wall mounted luminaire. Loop-in, loop-out possible for cables up to 2.5mm². BESA compatible.


To specify state:
Wall-mounted safety sign luminaire with 44 metres recognition range, IP65 protection and IK10 impact strength. Available as self-contained versions (E1D, E3D) with durable Lithium iron phosphate batteries (3 years guarantee on the batteries), and as central battery versions (ECD, ECP, ECC).
Cover with glued-on pictogram included, optionally with arrow up, down, left or right. Best visibility thanks to high luminance levels (>500cd/m² in white area in mains mode acc. to DIN 4844).
Easy cleanability thanks to smooth design & round edges (Food certificate available for areas with fully-packaged food).
