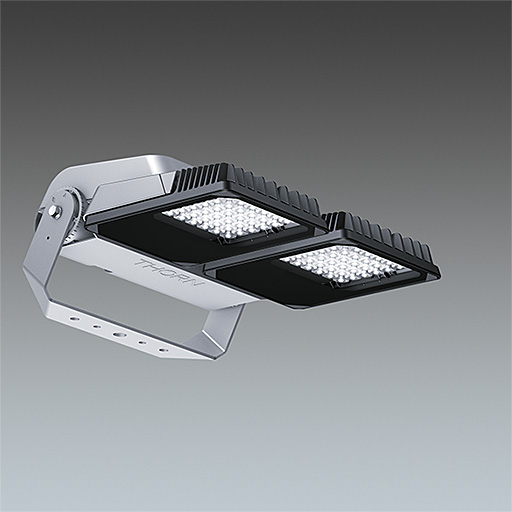

Areapak Pro

  • Areapak Pro

A versatile area floodlighting LED luminaire suited for wide ranging weather climate

  • Excellent thermal management einsures a lifespan up to 100 000 hours at ambient temperatures of 35°C
  • Comprehensive optical solution to cover full scale of applications
  • Fast payback and minimal Total Cost of Ownership with substantial energy saving
  • Excellent control of spill light – 0cd at 90°

Materials and Finish

Body: die-cast aluminium, painted grey RAL 9006
Heatsink: die-cast aluminium, painted dark sandy grey RAL 7043
Frame and stirrup: hot-dip galvanized steel
Glass: 5mm toughened
Screws: stainless steel

Installation and Mounting

Stirrup can be fixed by one Ø22mm, two Ø15mm holes and/or two Ø12mm holes.
Stirrup is reversible for hangdown position. Integral gear tray, access by removal of canopy via 4 allen screws. Supply via cable gland for Ø8-12mm cable.

Specification

To specify state:
A versatile area floodlighting LED luminaire with comprehensive optical solutions to cover full scale of applications in general purpose area lighting and sports lighting. Available in 2 sizes with lumen packages from 18 000 lm to 36 000lm and high mechanical resistance (IP66, IK08).
As Thorn Areapak Pro

New Product
LumExpress Product
eControl Product

Areapak Pro Medium, asymmetric

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
APP M 72L70 L740 A15 CL1 100H15718054LED17.4022664295
APP M 72L70 L740 A45 CL1 100H15718054LED17.4022664296
APP M 72L70 L740 A60 CL1 100H15718054LED17.4022664297
APP M 72L70 L840 A15 CL1 100H15718054LED17.4022664340
APP M 72L70 L840 A45 CL1 100H15718054LED17.4022664332
APP M 72L70 L840 A60 CL1 100H15718054LED17.4022664333

Areapak Pro Medium, symmetric

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
APP M 72L70 L740 S15 CL1 100H15718054LED17.4022664298
APP M 72L70 L740 S30 CL1 100H15718054LED17.4022664299
APP M 72L70 L740 S45 CL1 100H15718054LED17.4022664331
APP M 72L70 L840 S15 CL1 100H15718054LED17.4022664334
APP M 72L70 L840 S30 CL1 100H15718054LED17.4022664335
APP M 72L70 L840 S45 CL1 100H15718054LED17.4022664336

Areapak Pro Large, asymmetric

Areapak Pro Large, symmetric
