The Charter Building, Uxbridge, UK

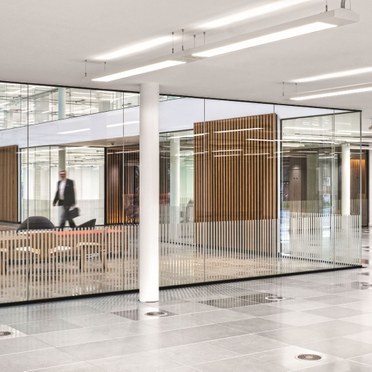

  • Charter Building_1
  • Charter Building_2
  • Charter Building_3
  • Lamp efficacy

    Lamp efficacy

    Ensuring the lamp efficiently converts electricity into light (lm/W).

  • Ballast classification

    Ballast classification

    Controlling the electricity supply to the lamp (Energy Efficiency Index).

  • Luminaire distribution

    Luminaire distribution

    Controlling light emission using optics which bend and shape the light to the correct location.

  • System efficacy

    System efficacy

    Combining optical and thermal control within the luminaire (luminaire lm/W).

  • Presence/absence detection

    Presence/absence detection

    Presence: Lights automatically turn on/off with movement. Absence: Lights automatically turn off and must be manually switched on.

  • Daylight detection

    Daylight detection

    Artificial lighting which responds to the natural light conditions.

  • Constant illuminance

    Constant illuminance

    A function designed to produce correct light levels for the duration of the maintenance period.

  • Task-scene setting

    Task-scene setting

    Allowing the user to set scenes and adapt the lighting to different tasks.

  • Timed off

    Timed off

    Automatic cut-off can be installed to turn all lights off during unoccupied hours.

  • Task lighting

    Task lighting

    Lighting task areas with the correct amount of light.

  • Zoning of lighting

    Zoning of lighting

    Lighting is zoned according to area use.

  • Maintenance schedule

    Maintenance schedule

    Maintenance must be performed in response to product age, performance and environment.

  • Waste light

    Waste light

    Eliminating waste light which does not hit the intended target.

  • Reflectance

    Reflectance

    Taking advantage of light which is reflected from the surface within the space.

  • Visible smart metering

    Visible smart metering

    Results of actions can be quickly seen as increased or decreased energy use to encourage responsible energy consumption.

Developed by the joint venture between Landid and Brockton Capital, The Charter Building has been designed to bring an entirely new workspace offer to Uxbridge, a 2440,000 sq ft high specification, design-led workspace. Just 100 metres from Uxbridge tube station, the building will provide a well-connected home for the modern, discerning occupier that values sustainability, good design and the wellbeing of its workforce.


The sheer footprint, along with ceiling heights up to four metres, one-acre floorplates, 5-storey atrium and internal 'street' that runs 100m North to South, make it one of the largest spec office developments in London and the South East – and indeed the largest in Uxbridge. The project saw the original building, which was once the UK headquarters for Coca Cola, completely stripped back to its structural frame. The floor plates were extended and a new penthouse floor with access to a dramatic roof terrace was also an addition.

Trevor Silver, Managing Director at Landid, commented "The Charter Building brings a completely new kind of vibrant contemporary office to Uxbridge. The building offers occupiers a distinctive location, with intelligently-designed workspaces that directly cater for the demands of modern businesses. Not only is the Charter Building a short walk from Uxbridge station, but the nearby High Street offers a fantastic array of amenities. It is a fabulous building that responds to the challenges of the fast- changing working landscape."

Lighting Objectives
Luminaires from Thorn Lighting have played an important role in the overall design of The Charter Building.
Thorn's Custom Division worked closely with Derry Building Services (DBS), the Mechanical and Electrical Design and Build Contractors on the project, to design an extremely efficient lighting scheme that fitted the brief. This included the provision of square edge continuous row fittings that would incorporate one control per three luminaires and emergency lighting.


Solution

Thorn provided a variety of designs with high grade fittings for review that were submitted to the customer for approval.  Once the initial design was approved, Thorn provided mock ups of the actual fittings and worked closely with DBS to ensure maximum efficiency was achieved on optics to achieve the required BREEAM status.

The final luminaire design was christened ‘Stealth Charter’ and a white finish was chosen. Thorn and DBS then worked together to devise a plan of how the layouts would sit in each area.

Chris Pillkington of DBS stated ‘From commencement of the project, Thorn have supported ourselves and the client through concept, design and development stages of this bespoke product, these luminaires make a substantial contribution to the overall ambience of the space and the success of what is a prestige project for the client and surrounding area of Uxbridge.”
