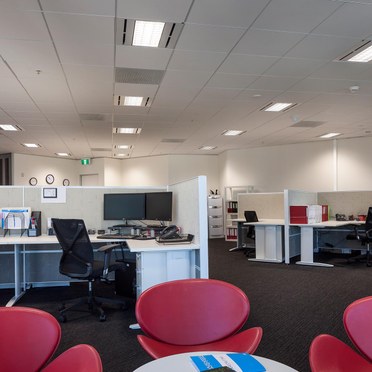

Custom Thorn fitting brings energy efficiency for Brisbane's Waterfront Place

Home to some of Australia’s most influential private and government offices, Waterfront Place is arguably Brisbane’s most iconic and desirable business address. The building offers premium positioning and sweeping uninterrupted views of the Brisbane River and Story Bridge.

The Waterfront Place Property Management team is proactive and committed to continually improving the building's energy efficiency. With Thorn having developed a T5 fluorescent troffer to replace T8 luminaires in 2006, the team approached Thorn once again in 2012. This time they wanted to upgrade the 3x14W T5 fluorescent troffer luminaires, which were providing general office area lighting, to 600x600mm LED luminaires.

Custom fitting to meet unique demands

The project was won based on Thorn’s ability to provide professional support for developing a custom fitting with the specific lumen package to minimise energy consumption and maintenance. This included specific LED board design, prototypes and photometric tests.

As well as providing a one-for-one replacement of the existing T5 fitting, the LED luminaire had to incorporate air slots to allow the building’s air conditioning system to function correctly. In effect, this meant a smaller area of illuminated panel to allow effective air slots to be incorporated.

A key objective driving the lighting refurbishment was to achieve a Tenancy Lighting Energy Efficiency Assessment rating of ‘Excellent’ in order to obtain a Building Energy Efficiency Certificate (BEEC).

More than 33% energy savings

With the custom fitting successfully developed and installed, energy consumption has been reduced from approximately 8.7W/m2 to 5.7W/m2, saving more than 33%. This has not only enabled Waterfront Place to achieve an ‘Excellent’ rating and BEEC certificate, but also provides significant financial savings for the tenants. With less air conditioning heat load, it also positively impacts the NABERS (National Australian Built Environment Rating System) rating for the building, which currently holds a 4.5-Star NABERS Energy Rating.

Barry Hanrahan, Project Lighting Consultant Queensland at Thorn, says: “Being able to assist both end user and electrical engineer to achieve a truly Performance Efficiency Comfort (PEC) solution has been very gratifying. Through multiple prototypes and feedback both the strict parameters and client expectations were met.”

According to Rod Martin, Senior Facilities Manager at Waterfront Place “The Thorn LED Fitting is a market leading product and assists Waterfront Place to continually provide premium quality services to our tenants, who ultimately reap the benefits through lower operating and maintenance costs.”

Key Facts – LED vs T5:

  • Total energy saving: 33%
  • Total carbon emission saving: 1.022 tonnes/annum
  • Total financial saving: 2,527 AUD/annum
  • Forecast lifetime net cost savings: $44,190
  • Payback time: 2.5 years
  • Lighting level before: 320 lux
  • Lighting level after: 372 lux
  • Uniformity: 0.7
